High Power Single Cylinder Air Cooling Four Stroke Manual Clutch Motorbike Engine Assembly with Exhaust for Streetbikes
| Brand Name: | YUANLU |
| Model Number: | 163FML-2(CG200) |
| Engine Model: | CG air cooling series |
| Cylinder diameter * stroke: | 63.5*62.2 |
| Total displacement: | 197ml |
| Minimum fuel consumption: | ≤354g/kw.h |
| Ignition method: | CDI |
Engine
Share to
Description
Product descriptions from the supplier
Motorcycle Engine Assembly Single Cylinder Air Cooling Four Stroke Manual Clutch Motorbike Engine Motorcycle Exhaust
Specification
| Packing box dimensions | 380×350×500mm |
| Starting method | Electric/foot start |
| Clutch mode | Wet multi-plate |
| Total lubricating oil capacity | 1100ml |
| Spark plug model | D8TC |
Technical features
Dual-module main and secondary axes
The double-module gear is used to improve the gear strength and impact resistance and extend the service life.
More reasonable valve train
The valve mechanism adopts a push rod structure, which makes the valve mechanism simpler, low-cost, easy to maintain, and more suitalble for use on tricycles
High wear-resistant piston ring technology
Double DLC technology piston rings increase wear resistance by 50%, effectively preventing oil burning.
Clutch liner cylinder body
The cylinder body adopts centrifugal cylinder liner, which improves the wear resistance by 20% and effectively delays the oil buming
Special camshaft
Add oil holes to fully lubricate the cam and extend its service life.
Optimize clutch mechanism
The five-column clutch with a new structure makes starting smoother and transmission more relable, better meeting the working conditions of tricycles

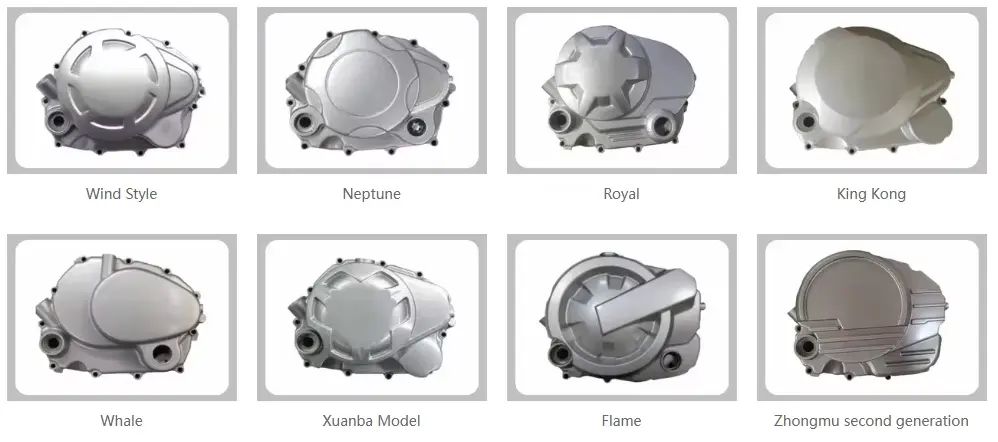

Side cover optional style

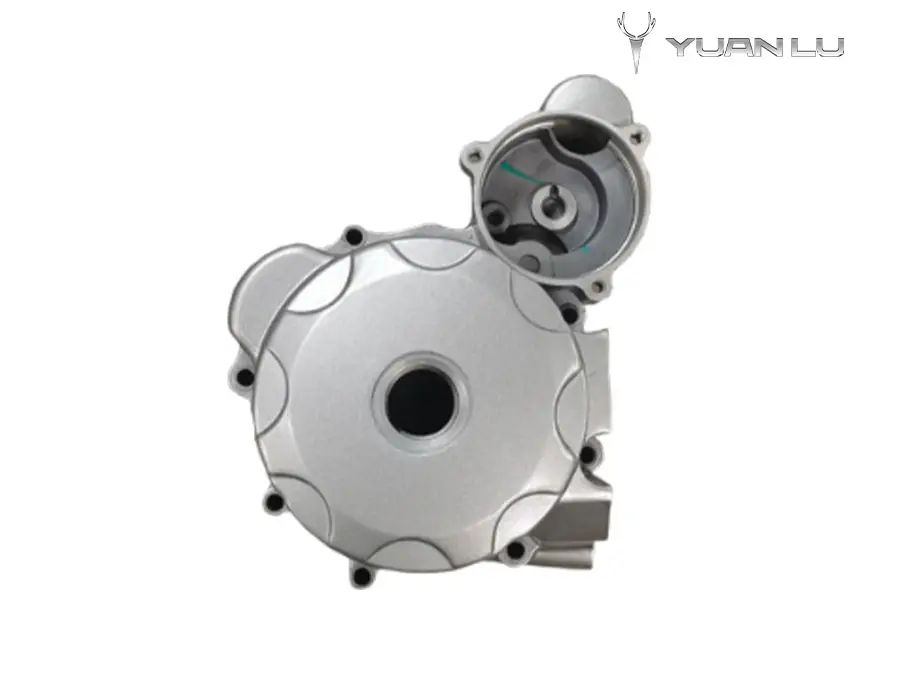

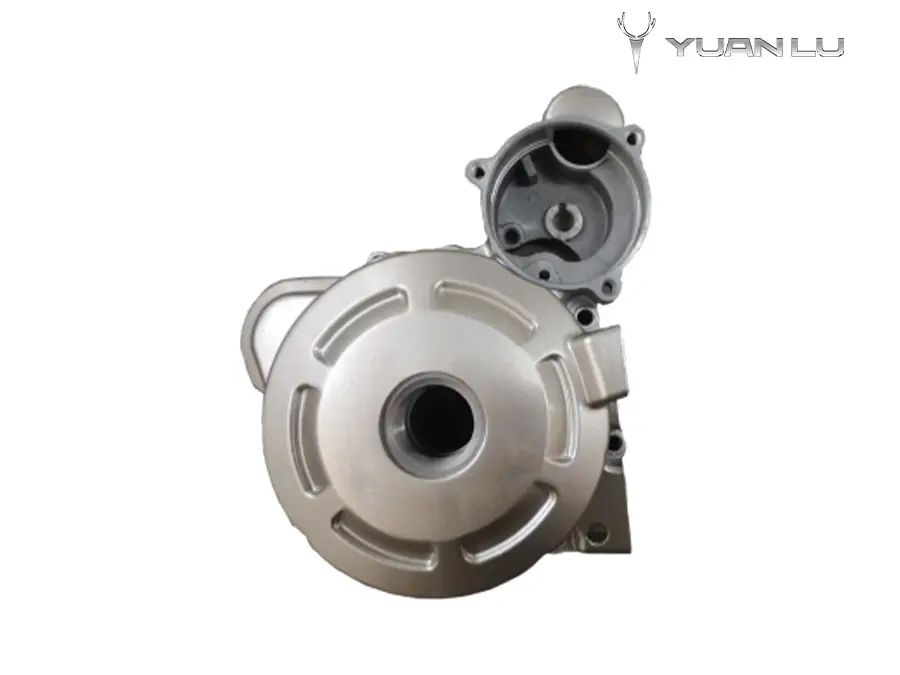

Right cover optional style

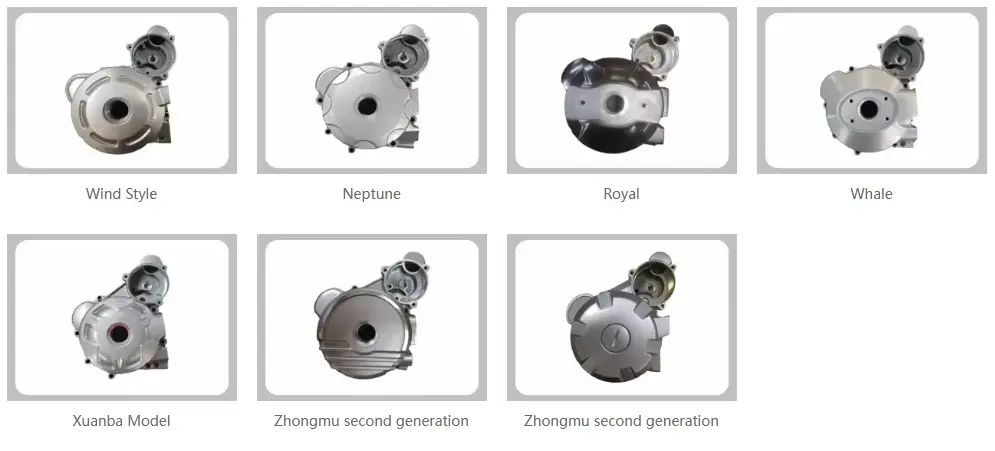

Left cover optional style
Packing & Delivery
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provides overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.
Factory
FAQ
1.Who are we?
We are based in Chongqing, China, start from 2021, have 30 years experience in manufacturing motorcycle and tricycle engines.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What services can we provide?
Accepted Delivery Terms: EXW, FOB, CIF, FCA, DDP；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T,L/C,PayPal;
4.What types of engines do you offer (gasoline, diesel, electric, hybrid)?
Gasoline.
5.What is the power output (kW/HP) and torque range of the engines?
Power output (kW/HP): 8~36
Torque range N.m:10~43
6.What is the MOQ? Are bulk discounts available?
No MOQ. Bulk discounts available.
7.How are engines packaged to prevent damage during transit?
Cardboard/foam board + individual packaging bag + carton + packing strip + waterproof bag for outer box.
8.Do you provide installation guides or troubleshooting support?
Yes.
