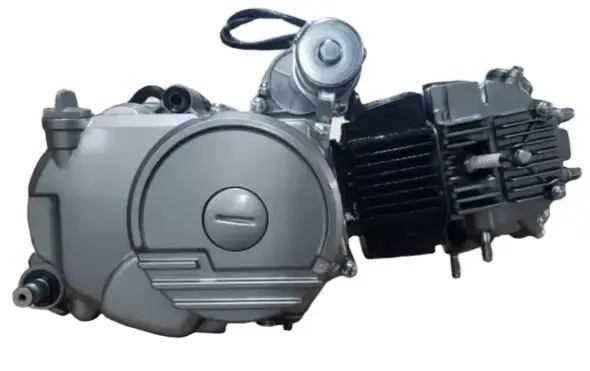

High Quality Single Cylinder Horizontal Four Stroke Automatic Clutch Air Cooling Motorcycle Engine High Power for Streetbikes
| Brand Name: | YUANLU |
| Model Number: | 1P52FMH-3(C110) |
| Engine Model: | Horizontal C Series |
| Cylinder diameter * stroke: | 52.4*49.5 |
| Total displacement: | 106.7ml |
| Minimum fuel consumption: | ≤367g/kwh |
| Ignition method: | CDI |
Engine
Product descriptions from the supplier
Specification
| Packing box dimensions | 459×287×225mm |
| Starting method | Electric/foot start |
| Clutch mode | Automatic clutch - wet multi-plate |
| Total lubricating oil capacity | 900ml |
| Spark plug model | A7TC |
Technical features
Smooth and comfortable speed change
The dual-stage clutch design makes the speed change smoother and increases riding comfort.
lmproved camshaft
The decompression mechanism is reiable and avoids starting rebound;the cam profle is optimized to efectively improve the intake efficiency and enhance theengine power performance.
Simple operation
The clutch operation and speed shifting adopt a linkage design to make driving easier.
Aluminum alloy cylinder block
The cylinder body is made of aluminum alloy structure, which efectively improves the heat transfer eficiency and has a beautiful appearance.
Integral cylinder bed
Reliability is greatly improved, avoiding punch press failures.
DLC piston ring technology
The application of advanced Dlc piston ring technoloay efectively improves the sealing performance, reliablity and durablity of the piston ring and reducesemission pollutants.

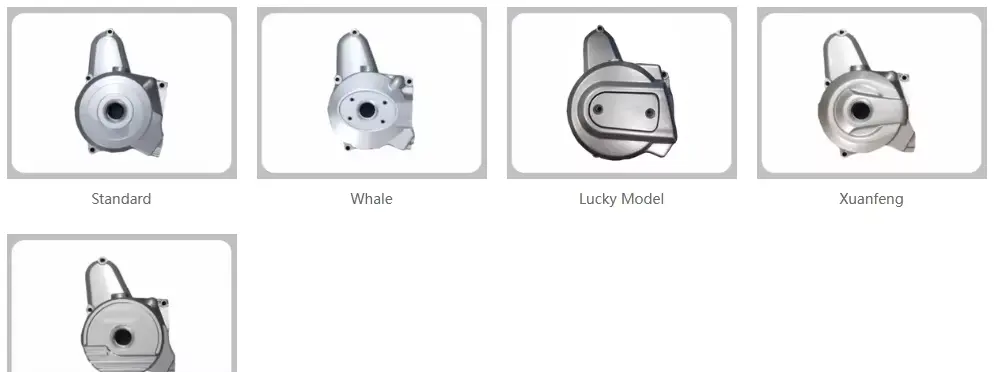

Side cover optional style

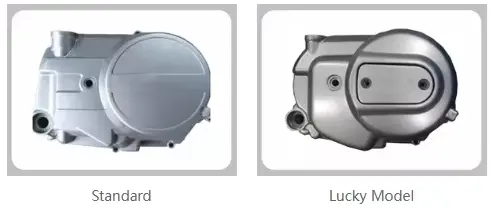

Right cover optional style
Left cover optional style

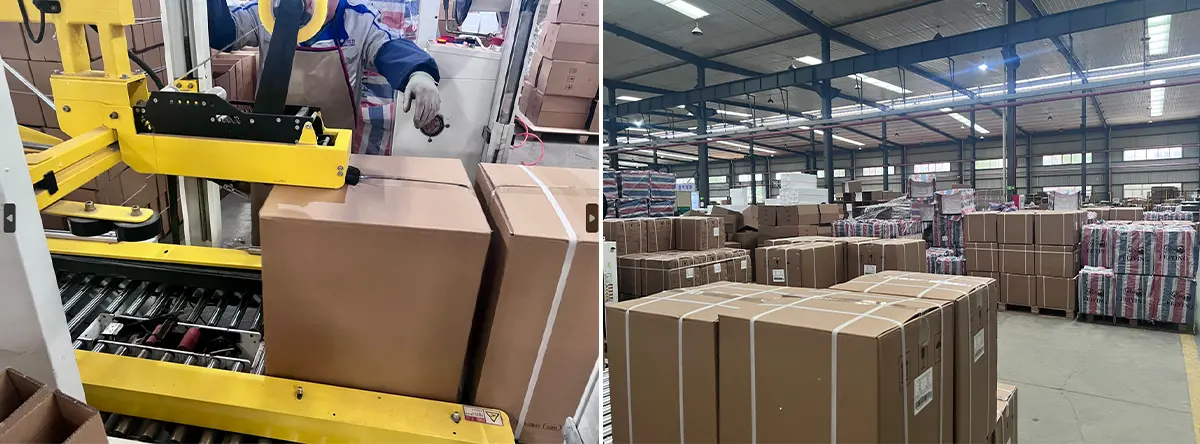

Packing & Delivery
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provides overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.

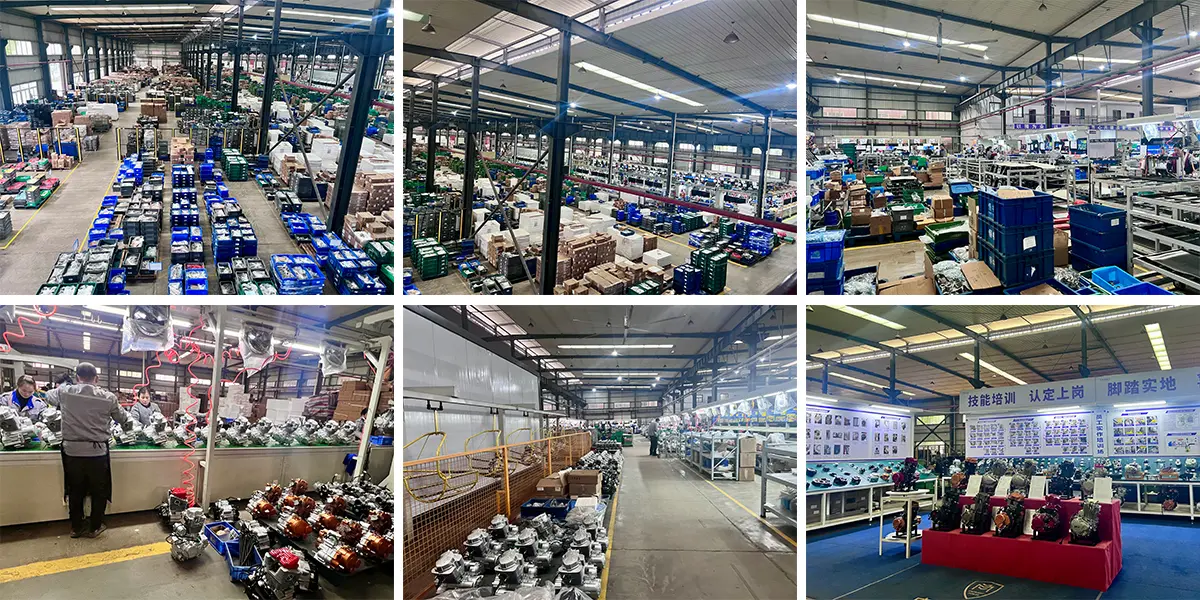

Factory
FAQ
1. who are we?
We are based in Chongqing, China, start from 2021,sell to South America(30.00%),Central America(20.00%),Southeast
Asia(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(5.00%),Eastern Europe(3.00%),South Asia(2.00%),Eastern
Asia(0.00%),North America(0.00%),Oceania(0.00%),Southern Europe(0.00%),Northern Europe(0.00%),Domestic Market(0.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electric Motorcycles, Electric Scooters, Electric Tricycles, Tricycles, Electric Cars
4. why should you buy from us not from other suppliers?
JJ Global: 1. Authorized by various central government enterprises & private companies for their exportation.Owned registration
certificates in ministry of commerce in China. 2.Providing KD & CBU full Tech & Sales support of Automobile & Motorcycle.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean
Key attributes
Industry-specific attributes
| Displacement | 100-200CC |
| Max. Speed | > 80km/h |
| Motor | Other |
Other attributes
| Brand Name | YUANLU |
| Place of Origin | Chongqing, China |
| Model Number | 1P52FMH-3(C110) |
| Engine Model | Horizontal C Series |
| Engine | Single cylinder air-cooled four-stroke electric/foot start automatic |
| Color | Black |
| Cylinder diameter * stroke | 52.4*49.5 |
| Total displacement | 106.7ml |
| Maximum net power/corresponding speed | 4.6kW/7500r/min |
| Maximum torque/corresponding speed | 6.9Nm/5000r/min |
| Minimum no-load stable speed | 1500r/min |
| Minimum fuel consumption | ≤367g/kwh |
| Ignition method | CDI |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 46X29X23 cm |
| Single gross weight: | 20.500 kg |
